Infrared camera ImageIR® 9300 Series from InfraTec
  • Detector Format

    Efficiently measuring the smallest structures on large-scale objects

  • High-speed Mode

    Due to Binning technology increase frame rates and thermal resolution at the same time

  • Pixel Size

    Pixel size with microscopic lens up to 1.3 μm

  • Thermal resolution

    Precise measurement of smallest temperature differences

  • Integration Time

    Analysis of fast processes at an ideal NETD

High-speed Mode to Increase Frame Rates and Thermal Resolution at the Same Time

If you want to analyze the thermal behavior of objects and processes from a wide variety of perspectives, you can use the high-speed mode for maximum flexibility. This function allows the camera to be used in two different operating modes. The standard mode suits best for depicting the smallest geometrical details. This allows users to record images with the native number of pixel of the camera detector. Switching to high-speed mode opens up the option of more than triple the frame rate, while the field of view (FOV) remains identical. This enables for most accurate time monitoring of fast processes. At the same time, the thermal resolution increases by a factor of 2 in high-speed mode, which additionally improves the analysis of temperature differences.

Notebook with thermographic software IRBIS® 3 from InfraTec

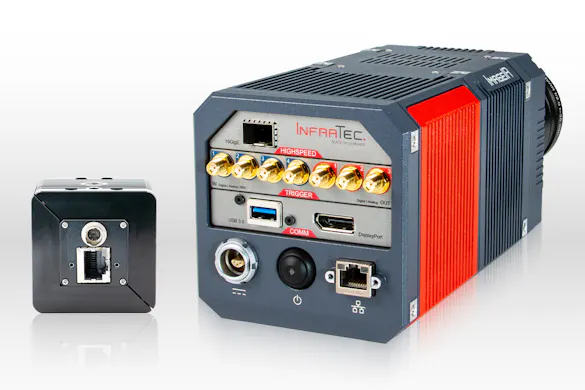

  • Integrated Trigger and Process Interfaces

    The camera series ImageIR® is equipped with a snapshot detector as well as with an internal trigger interface, which guarantees a repeatable high-precision triggering. Two respective in- and outputs are used to operate the camera or to generate digital control signals for external devices. Two digital channels of the data stream can be recorded synchronously with those trigger inputs. Additional digital and analogue in- and outputs are available in connection with the process interface IRBIS® 3 process. Furthermore, extra information will be saved directly with the images.

  • Detect Smallest Temperature Differences Using High Thermal Resolution of 20 mK

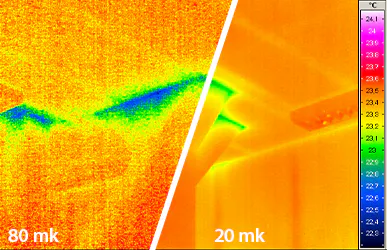

    The thermal resolution of the ImageIR® infrared camera series allows you to measure smallest temperature differences of Better than 0.02 K (at 30 °C). Thermal images with a narrow temperature span display details absolutely sharp. You will find interesting signatures even there where other infrared camera systems cannot detect any temperature differences any longer.

  • Take Advantage of the Modular Concept for Your Flexibility

    The closed, industrial-suited, high-strength aluminium alloy housing is very compact and protects the sensitive sensors and electronics even during roughest applications. It impresses with its low weight. The modular design allows for an application-specific configuration and later adaptation to varying demands. The interfaces are equipped with push-on connectors to uphold the degree of protection.

10 GigE Interface for a Strong Increase in Output

Thermographic camera series ImageIR® with new 10 GigE interface

The 10 Gigabit Ethernet interface of the high-end camera series ImageIR®, opens this extremely fast transmission standard with a NIC specially developed by InfraTec. This works with optical or electrical transceiver modules that are easy to change and are called SFP+. For all models of the ImageIR® 9400 with their (1,280 × 1,024) IR pixel detectors this leads to a transfer rate in the full frame mode up to 180 Hz.

Users can transfer/store large quantities of data to a computer easily and reliably. Different 10 GigE fiber SFP+ transceivers allow transmission ranges of up to ten kilometers with the same low sensitivity to electromagnetic interference. A corresponding standard SFP ensures backward compatibility with the conventional GigE interface. This combination allows the ease of use of the cameras with the new 10 Gigabit Ethernet interface in existing systems - though at a reduced transmission rate.

Technical Specifications

Spectral range (2.0 … 5.5) μm or (3.6 … 4.9) μm
Pitch 10 μm
Detector InSb
Detector format (IR pixels) (1,280 × 1,024)
Image format with opto-mechanical MicroScan (IR pixels) (2,560 x 2,048)
Readout mode ITR / IWR
Aperture f/2.2 or f/3.0
Detector cooling Stirling cooler
Temperature measuring range (-40 … 1,500) °C, up to 2,000 °C*
Measurement accuracy ± 1 °C or ± 1 %
Temperature resolution @ 30 °C Up to 0.03 K / Up to 0,02 K in high-speed mode
Frame rate Up to 180 / 342 / 622 / 2.601<br />High-speed-mode: up to 622 / 1,053 / 1,615 / 3,343
Window mode Yes
Focus Manually, motorised or automatically*
Dynamic range Up to 16 bit*
Integration time (1 … 20,000) μs
Rotating aperture wheel * Up to 5 positions
Rotating filter wheel * Up to 5 positions
Interfaces 10 GigE, HDMI*
Trigger 3 IN / 2 OUT, TTL
Analog signals*, IRIG-B* * 3 IN / 2 OUT, yes
Tripod adapter 1/4" and 3/8" photo thread, 2 × M5
Power supply 24 V DC, wide-range power supply (100 … 240) V AC
Storage and operation temperature (-40 … 70) °C, (-20 … 50) °C*
Protection degree IP54, IEC 60529
Dimensions; weight (235 × 120 × 160) mm*, 4.0 kg (without lens)
Further functions High-speed mode*, Multi Integration Time*
Analysis and evaluation software* IRBIS® 3, IRBIS® 3 view, IRBIS® 3 plus*, IRBIS® 3 professional*, IRBIS® 3 control*, IRBIS® 3 online*, IRBIS® 3 process*, IRBIS® 3 active*, IRBIS® 3 mosaic*, IRBIS® 3 vision*
Depending on model
Dimensions of the ImageIR

Field of View Calculator

Check the geometrical resolution of our infrared cameras for your application.

Each measurement or testing task has its own characteristic basic conditions. For getting optimal results camera, detector and lens have to be perfectly matched to one another. The field of view calculator helps you to determine the appropriate combination.

Field of View Calculator of the ImageIR®

Software

Comprehensive Thermography Evaluation Software for Efficient Operation

The software family IRBIS® 3, which was developed by InfraTec, is part of a complete system of the camera series ImageIR®. The comfortable and professional thermography software IRBIS® 3 professional offers a wide range of analysis- and editing tools to analyse sophisticated thermal investigations. The combination of ImageIR® together with the professional thermographic software meets all requirements that are set as standard for efficient high-performance tools for thermographic investigations.

Analysis Software of Software Family IRBIS® 3
