Thermography sequences, which are synchronised with the excitation unit, are edited and displayed as a false colour result image by means of a specially developed analysis procedure. Thus, even small defects can be recognised repeatedly and reliably. The selection of the implemented evaluation algorithm largely depends on the material and geometry of the test object as well as on the type of defect to be detected.

Thermographic software IRBIS® 3 active

Besides InfraTec's high-end camera series ImageIR®, the utilisation of powerful microbolometer cameras for active thermography is another completely unproblematic solution nowadays. The excellent geometrical and thermal resolution of the camera series VarioCAM® High Definition as well as their fast image refresh rate and trigger ability are a perfect basis for the solution of a variety of problems.

Get in contact with InfraTec thermography division

Would You Like to Know More?

It is not unusual for tasks to be associated with special requirements. Discuss your specific application needs with our specialists, receive further technical information or learn more about our additional services.

United States

InfraTec infrared LLC
75024 Plano, TXUSA

Features of IRBIS® 3 active

  • Comfortable data evaluation possibilities of image sequences
  • Storage of input parameter
  • Calculation of phase and amplitude images
  • Analysis with different active thermography methods: Quotient Method, Pulse Phase Thermography, Lock-In-Thermography
  • Algorithms independent of emissivity
  • Storage of input parameters for different test objects

Analysis Methods of IRBIS® 3 active





Quotient method

The heat flow of the test object will be analysed by means of incline or decline of the surface temperature.

Pulse Phase Thermography (PPT)

The temperature curve will be analysed depending on different frequencies (n = 1, 2, 3 ...). One amplitude image and one phase image will be established for each frequency.

Lock-in Thermography (LIT)

The sequences of periodical excitation of the test object will be analysed.

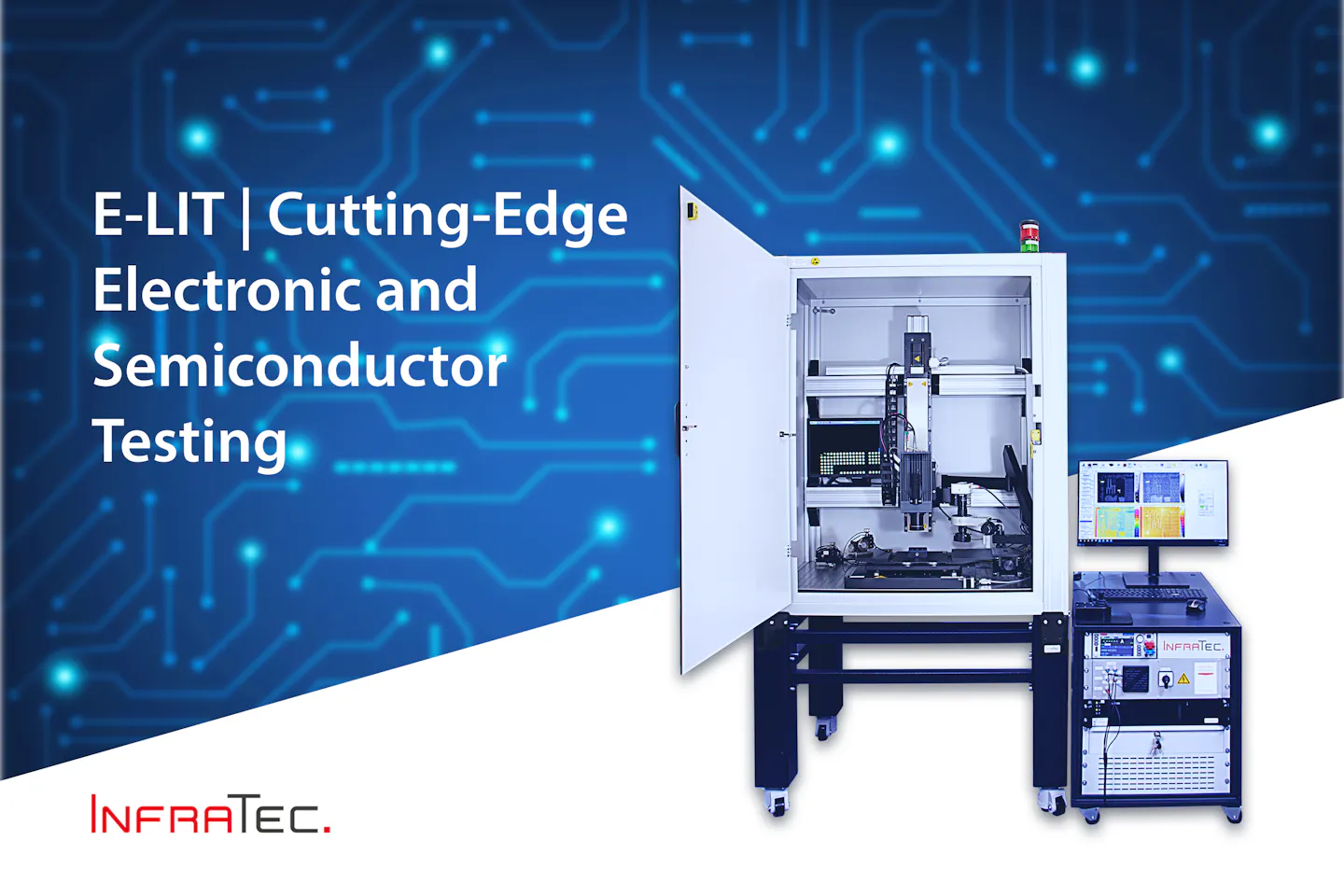

Automated Lock-In measurement with E-LIT from InfraTec

Automated Lock-In measurement with E-LIT from InfraTec

Play
Playing the video requires your consent to set YouTube cookies, which are advertising cookies.

Lock-in Thermography in Electronics and Electrical Engineering

By means of lock-in analysis procedure of InfraTec's IRBIS® 3 active, errors that only cause mK or μK deviations can be reliably detected and assigned to their location:

InfraTec Lock-in Thermography; Classical thermal imaging – defect not detectable

Classical thermal imaging – defect not detectable

InfraTec Lock-in Thermography; Amplitude image – analysis by Lock-in Thermography

Amplitude image – analysis by Lock-in Thermography

InfraTec Lock-in Thermography; Combination of live and amplitude image

Combination of live and amplitude image
