ImageIR® 9300 was developed for demanding operations in research and development, non-destructive material testing and process monitoring sectors. Its modular structure, which consists of optical-, detector- and interface-modules, makes it easily adaptable to the respective application.

Infrared camera ImageIR® 9300 Series from InfraTec
  • InfraTec-icon-detector-1280x1024
    Detector Format

    Efficiently measuring the smallest structures on large-scale objects

  • InfraTec-icon-therm-25mK
    Thermal resolution

    Precise measurement of smallest temperature differences

  • InfraTec-icon-10-gige
    10 GigE Interface

    Transmission and storage of large amounts of measurement data on a computer in very short time

  • InfraTec-icon-trigger
    Internal Trigger Interface

    Camera control and output of control signals for external devices

  • InfraTec-icon-integrationszeit
    Integration Time

    Analysis of fast processes at an ideal NETD

Integrated Trigger and Process Interfaces

The camera series ImageIR® is equipped with a snapshot detector as well as with an internal trigger interface, which guarantees a repeatable high-precision triggering. Two respective in- and outputs are used to operate the camera or to generate digital control signals for external devices. Two digital channels of the data stream can be recorded synchronously with those trigger inputs. Additional digital and analogue in- and outputs are available in connection with the process interface IRBIS® 3 process. Furthermore, extra information will be saved directly with the images.

Easily Transfer Your Radiometric Data to the Computer

You will be able to work with both radiation proportional data formats and also directly with temperature data in °C or °F. You will receive the data by setting your specific parameters in the easy handling acquisition interface of the  ImageIR® 9300 series.

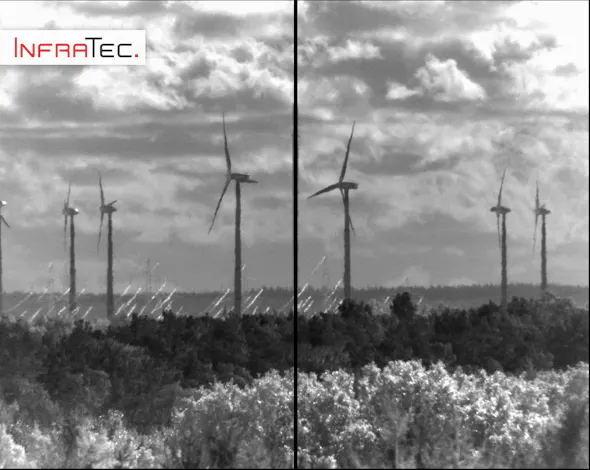

  • Avoid measurement errors using highest geometrical resolution of (1,280 × 1,024) infrared pixels

    It is equipped with a cooled focal-plane-array photon detector with a format of (1,280 × 1,024) IR pixels. In combination with the outstanding thermal resolution of 0.025 K (25 mK), very high frame rates of 106 Hz and extremely short integration times of only a few microseconds, this camera offers you a whole new range of applications.

  • Detect Smallest Temperature Differences Using High Thermal Resolution of 25 mK

    The thermal resolution of the ImageIR® infrared camera series allows you to measure smallest temperature differences of 25 mK (at 30 °C). Thermal images with a narrow temperature span display details absolutely sharp. You will find interesting signatures even there where other infrared camera systems cannot detect any temperature differences any longer.

  • Take Advantage of the Modular Concept for Your Flexibility

    The closed, industrial-suited, high-strength aluminium alloy housing is very compact and protects the sensitive sensors and electronics even during roughest applications. It impresses with its low weight. The modular design allows for an application-specific configuration and later adaptation to varying demands. The interfaces are equipped with push-on connectors to uphold the degree of protection.

10 GigE Interface for a Strong Increase in Output

Thermographic camera series ImageIR® with new 10 GigE interface

The 10 Gigabit Ethernet interface of the high-end camera series ImageIR®, opens this extremely fast transmission standard with a NIC specially developed by InfraTec. This works with optical or electrical transceiver modules that are easy to change and are called SFP+. For all models of the ImageIR® 9300 with their (1,280 × 1,024) IR pixel detectors this leads to a transfer rate in the full frame mode up to 106 Hz.

Users can transfer/store large quantities of data to a computer easily and reliably. Different 10 GigE fiber SFP+ transceivers allow transmission ranges of up to ten kilometers with the same low sensitivity to electromagnetic interference. A corresponding standard SFP ensures backward compatibility with the conventional GigE interface. This combination allows the ease of use of the cameras with the new 10 Gigabit Ethernet interface in existing systems - though at a reduced transmission rate.

HighSense – Always the Optimal Camera Setting

Cameras of the ImageIR® series have a reliable factory calibration. Thanks to HighSense, ImageIR® users have the option of setting up individual temperature measuring ranges based on the factory calibration that best suit the respective task.

Depending on the measuring task, the required temperature range can be selected and the optimum integration time for this purpose is calculated – or one decides to proceed in reverse order. Thus, the calibration can be retained even in the case of changed integration times.

The software also offers the possibility of storing a large number of such areas clearly arranged. Individually named and permanently stored, the operator can quickly access them. The same applies to changing, renaming and deleting profiles. HighSense is available for different camera models of the ImageIR® series. This function can optionally be added to systems already delivered.

HighSense for thermographic camera series ImageIR®

Technical Specifications

Spectral range (2.0 … 5.7) µm
Pitch 15 µm
Detector InSb
Detector format (IR pixels) (1,280 × 1,024)
Readout mode ITR / IWR
Aperture f/2.0 or f/4.6
Detector cooling Stirling cooler
Temperature measuring range (-40 … 1,500) °C, up to 2,000 °C*
Measurement accuracy ± 1 °C or ± 1 %
Temperature resolution @ 30 °C 0.025 K
Frame rate Up to 106 / 200 / 390 / 3,200 Hz
Window mode Yes
Focus Manual, motorised or automatically*
Dynamic range Up to 16 bit*
Integration time (0.5 … 18,000) µs
Rotating aperture wheel * Up to 5 positions
Rotating filter wheel * Up to 5 positions
Interfaces GigE | 10 GigE* | 2× CAMLink* | HDMI*
Trigger 3 IN / 2 OUT, TTL
Analog signals*, IRIG-B* 2 IN / 2 OUT, yes
Tripod adapter 1/4" and 3/8" photo thread, 2 × M5
Power supply 24 V DC, wide-range power supply (100 … 240) V AC
Storage and operation temperature (-40 … 70) °C, (-20 … 50) °C
Protection degree IP54, IEC 60529
Impact strength/vibration resistance in operation 2 G DIN EN 60068-2-6, 25 G DIN EN 60086-2-27
Dimensions; weight (235 × 120 × 160) mm*; 4.0 kg (without lens)
Further functions Multi Integration Time*, HighSense*
Analysis and evaluation software* IRBIS® 3, IRBIS® 3 view, IRBIS® 3 plus*, IRBIS® 3 professional*, IRBIS® 3 control*, IRBIS® 3 online*, IRBIS® 3 process*, IRBIS® 3 active*, IRBIS® 3 mosaic*, IRBIS® 3 vision*
Depending on model
