Super-Zoom Infrared Camera Series

ImageIR® 9300 Z

The high-end infrared camera ImageIR® 9300 Z with 30× zoom lens allows effortless handling of complex reconnaissance and surveillance tasks.

  • Cooled detectors with up to (1,280 × 1,024) IR pixels

  • Detection range of 15 km for persons

  • Detection range of 18 km for vehicles

  • Customisable software interface offers time coded real-time playback

Infrared camera ImageIR® 8300/9300 Z Series from InfraTec
Super Zoom Thermal Image of the City Hall in Dresden
Super Zoom Thermal Image of the City Hall in Dresden
Super Zoom Thermal Image of the City Hall in Dresden
Super Zoom Thermal Image of the City Hall in Dresden
Infrared camera ImageIR® 8300/9300 Z Series from InfraTec
0 | 6
InfraTec Infrared camera
InfraTec-icon-detector-1280x1024
Detector Format

Efficient measurement of smallest structures on large-scale objects

InfraTec Icon thermal resolution 20 mk
Thermal Resolution

Precise detection of smallest temperature differences

InfraTec-icon-motorfocus
Motor Focus

Precise, remote and quick motorised focusing

InfraTec-icon-reichweite-18-km
Detection Range

Detection of vehicles and persons at very large distances

InfraTec-icon-zoom-30x
Optical Zoom

Most detailed imaging of measurement objects

Infrared Detector Inter­face Boosts Camera Full-frame Rate

With the cameras ImageIR® 9300 Z of the infrared camera series ImageIR® InfraTec presents a sophisticated long range infrared camera system in combination with an incredibly powerful zoom lens. State-of-the-art InSb detector technology with a resolution of (1,280 × 1,024) IR pixel offers most sensitive, high-resolution imaging capacity for 24/7 operation even through fog, smoke, day and night. Frame rates of up to 100 Hz support demanding imaging, tracking and monitoring tasks. The detection range of these infrared camera models is outstanding: vehicles can be detected up to 18 km and persons up to 15 km.

The rugged and exact power zoom together with the high-performance 30× zoom lens achieves a continuously adjustable field of view from (39.8 × 32.3)° down to (1.3 × 1.0)° with a detector format of (1,280 × 1,024) IR pixels. Therefore, also objects being far away can be displayed with a high-resolution infrared image. The customisable software interface offers time coded real-time playback.

Applic­a­tion Areas ImageIR® 9300 Z

  • Long range border guard surveillance

  • Harbor protection

  • Reconnaissance

  • Long-range tracking and monitoring

  • Environmental and animal monitoring

Tech­nical Specific­a­tions

Spectral range(3.6 … 4.9) µm
Pitch15 µm
DetectorInSb
Detector format (IR pixels)(1,280 × 1,024)
Image recording principleSnapshot
Readout modeITR / IWR
Aperturef/5.5
Detector coolingStirling cooler
Temperature measuring range(-10 … 200) °C, up to 500 °C*
Temperature resolution at 30 °C0.02 K
Frame rateUp to 50 / 200 / 390 / 3,400 Hz
Window modeYes
* Depending on model
Field of View Calculator for Your Measurement Task

Configure Your Camera System

Each measurement or testing task has its own characteristic basic conditions. For getting optimal results camera, detector and lens have to be perfectly matched to one another. The field of view calculator helps you to determine the appropriate combination.

Field of View Calculator of the ImageIR® 9300 Z

Indus­tries & Applic­a­tions for this Infrared Camera

Automation InfraTec INDU-SCAN - In-process industrial temperature measurement
Indus­trial Auto­ma­tion

Process Control – INDU-SCAN

Contactless measurement of temperature distributions and profiles with industrial thermographic cameras permits efficient monitoring and control of temperature-dependent processes and procedures within a system-integrated quality assurance programme in industry.

thermal imaging for security tasks

Security Applications

For observation tasks for applications - like investigation, remote surveillance, border guard and the protection of critical infrastructure - powerful infrared cameras are becoming increasingly indispensable today.

Thermographic Automation Solutions - Automatic object monitoring system IROD
Observation & Investigation

Site Surveillance – IROD

Calibrated measuring cameras offer the option of a completely automated site surveillance by utilising temperature alarms – an approach well beyond the simple and susceptible motion detection systems used elsewhere. With IROD InfraTec offers a scaleable, powerful system solution.

Automation InfraTec INDU-SCAN - In-process industrial temperature measurement
Indus­trial Auto­ma­tion

Process Control – INDU-SCAN

Contactless measurement of temperature distributions and profiles with industrial thermographic cameras permits efficient monitoring and control of temperature-dependent processes and procedures within a system-integrated quality assurance programme in industry.

thermal imaging for security tasks

Security Applications

For observation tasks for applications - like investigation, remote surveillance, border guard and the protection of critical infrastructure - powerful infrared cameras are becoming increasingly indispensable today.

Thermographic Automation Solutions - Automatic object monitoring system IROD
Observation & Investigation

Site Surveillance – IROD

Calibrated measuring cameras offer the option of a completely automated site surveillance by utilising temperature alarms – an approach well beyond the simple and susceptible motion detection systems used elsewhere. With IROD InfraTec offers a scaleable, powerful system solution.

Product Flyer

Get all the information you need at a glance in our product flyers

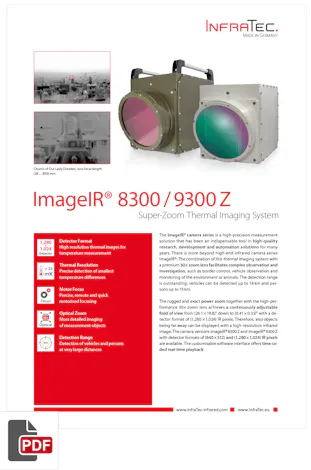

InfraTec ImageIR 8300/9300 Z Flyer
