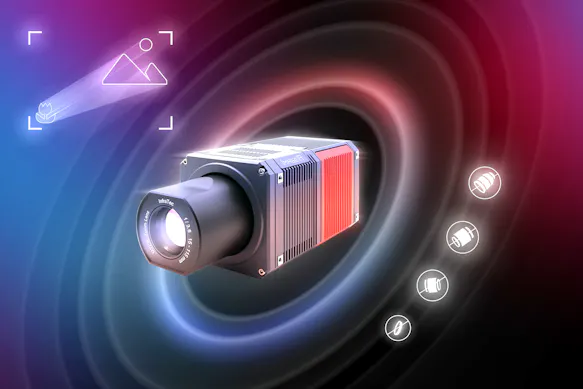

Smaller, lightweight, without tedious lens changes – efficiency has a new name: The ImageIR® 6300 Z with a powerful zoom lens and a SWaP detector (Size, Weight and Power).
Cooled focal plane array photon detector operating in snapshot mode with (640 × 512) IR pixels
Standard built-in 7.5x zoom lens with motor focus
Focal length of (15 ... 115) mm or (25 ... 170) mm
Operation via smartphone or tablet with integrated web interface
Compact size and low weight for space-saving system integration
Storage of large amounts of data on the integrated SSD
Modern XBn detector; 10 μm pitch
Repeatable measurements for different field of views
Precise, fast and remotely controllable; including multiple autofocus functions
7.5× zoom lens; focal length ranges (15 … 115) mm or (25 … 170) mm
Increase frame rates and thermal resolution at the same time using binning technology
Enables the maintenance-free use over long operating times
Motorized zoom lenses in general
Radiometric zoom lens specialties
Specific motorized zoom camera advantages
Applications for infrared zoom cameras in detail
Heart of the infrared camera is the SWaP detector, a cooled focal-plane array photon detector with a format of (640 × 512) IR pixels, which operates in snap-shot mode. For the innovative XBn detector used, a smaller stirling cooler with lower power is sufficient due to the higher working temperature, which reduces the overall power consumption, dimensions and weight of the ImageIR® 6300 Z and significantly extends the maintenance-free service life. In addition, the zoom camera combines different focal lengths in one system and is radiometrically calibrated over the entire focal length range.
The consistent use of the latest technologies in optics, detector and electronics is the basis for the remarkable user-friendliness of the camera series. The thermal imaging ImageIR® 6300 Z has a 7.5× zoom lens integrated as standard, which allows, in combination with the motorised focus, a fast and flexible adjustment to different object distances and sizes while maintaining stable image quality and high measurement accuracy.
The ImageIR® 6300 Z has high-performance image processing electronics and can output the IR image data in real time to several video and data interfaces as well as record and evaluate it autonomously. This camera can also be operated via smartphone or tablet using its web interface. With these features and the possibility to power it from an external battery, this camera is ready for mobile outdoor use. The zoom camera can be easily integrated into existing system environments in a space-saving way. It is suitable for universal use in research and development, but also for integration into GIMBAL systems in the field of flight thermography.

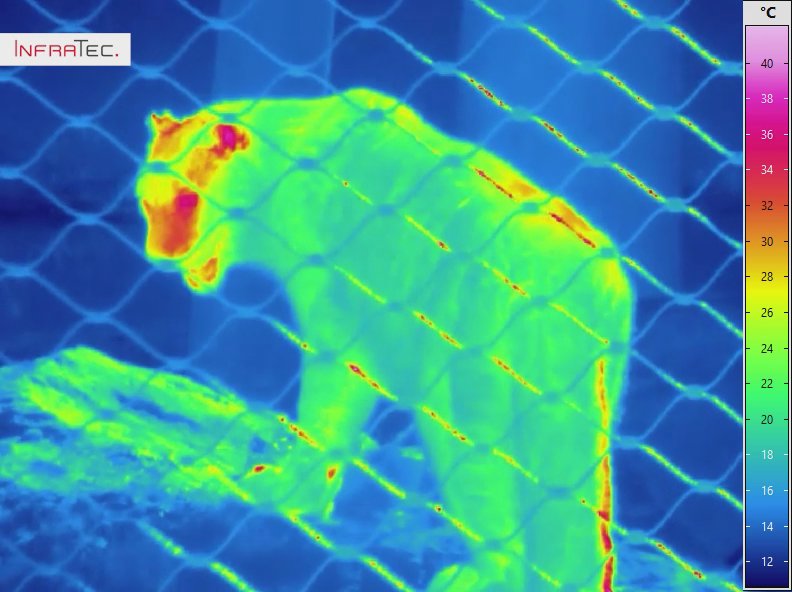

The thermal resolution of the ImageIR® infrared camera series allows you to measure smallest temperature differences of better than 0.03 K (at 30 °C). Thermal images with a narrow temperature span display details absolutely sharp. You will find interesting signatures even there where other infrared camera systems cannot detect any temperature differences any longer.
If you want to analyze the thermal behavior of objects and processes from a wide variety of perspectives, you can use the high-speed mode for maximum flexibility. This function allows the camera to be used in two different operating modes. The standard mode suits best for depicting the smallest geometrical details. This allows users to record images with the native number of pixel of the camera detector. Switching to high-speed mode opens up the option of more than triple the frame rate, while the field of view (FOV) remains identical. This enables for most accurate time monitoring of fast processes. At the same time, the thermal resolution increases by a factor of 2 in high-speed mode, which additionally improves the analysis of temperature differences.
A new generation of electronics is entering the field of thermography, allowing an operating system to be embedded directly in the camera (embedded system). In addition to the well-known benefits of a Software Development Kit, the integrated SDK opens up numerous other possibilities for users:
Independent operation of the camera without PC
Automated control of camera functions with the aid of the integrated SDK
Implementation of evaluation algorithms and camera control based on these algorithms directly in the camera
These SDK functions make it possible to let the thermography camera run autonomously. If programmed appropriately, the camera no longer requires a permanent, stable network connection to a PC. This makes it ideal for use in hard-to-reach places and facilitates integration into and adaptation to existing systems.
The new integrated Software Development Kit was developed and optimised by InfraTec in collaboration with customers from industrial and research environments.
Spectral range | (3.6 … 4.15) µm |
Pitch | 10 µm |
Detector | XBn |
Detector format (IR pixels) | (640 x 512) |
Image recording principle | Snapshot |
Readout mode | ITR / IWR |
Aperture | f/3.6 |
Detector cooling | Stirling cooler |
Temperature measuring range | (-10 … 600) °C |
Measurement accuracy | ± 2 °C or ± 2 % |
Temperature resolution at 30 °C | 0.03 K |
Frame rate | Up to 180/344/619/2,760 Hz high-speed mode: 620/1,030/1,500/2,150 |
* Depending on model
** In selected measurement ranges
Each measurement or testing task has its own characteristic basic conditions. For getting optimal results camera, detector and lens have to be perfectly matched to one another. The field of view calculator helps you to determine the appropriate combination.
The software family IRBIS® 3, which was developed by InfraTec, is part of a complete system of the camera series ImageIR®. The comfortable and professional thermography software IRBIS® 3 professional offers a wide range of analysis- and editing tools to analyse sophisticated thermal investigations. The combination of ImageIR® together with the professional thermographic software meets all requirements that are set as standard for efficient high-performance tools for thermographic investigations.

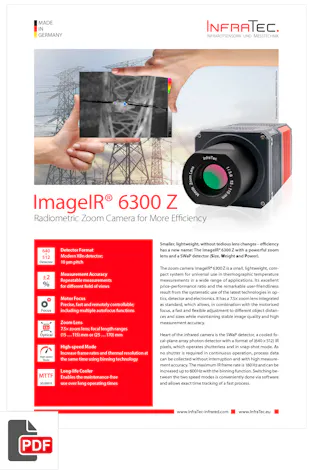

Get all the information you need at a glance in our product flyers
