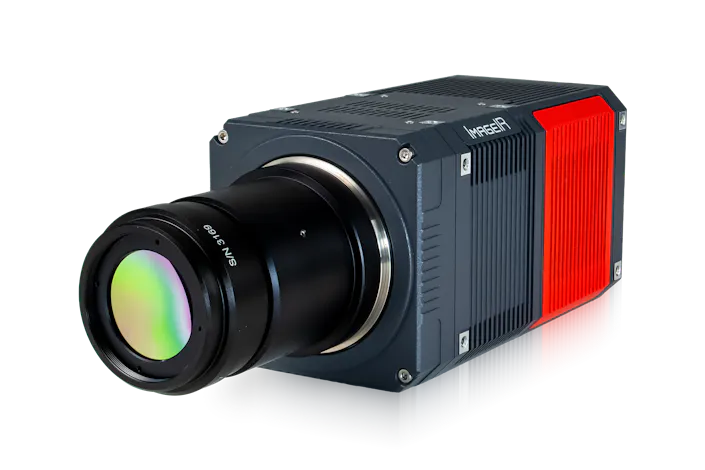

ImageIR® 6300
The ImageIR® 6300, as an extension of the ImageIR® series, offers entry into the class of infrared cameras with cooled photon detectors and provides users with enormous performance advantages at a very good price/performance ratio. Due to the latest SWaP detector technology and a robust, very compact construction, this camera is predestined for demanding OEM and continuous operation applications.
Simple and cost-effective installation even in harsh process environments
Very long cooler running times, ideally suited for continuous operation
Very small, lightweight, and robust camera, ideal for demanding OEM applications
High geometric resolution thanks to 10 µm pixel pitch
Customers Trust InfraTec
Large detector enables highest sensitivity
Analysis of extreme temperature changes and gradients in full frame
Control via web interface
Precise detection of smallest temperature differences
Increase frame rates up to 620 Hz and thermal resolution at the same time using binning technology
Enables the maintenance-free use over long operating times

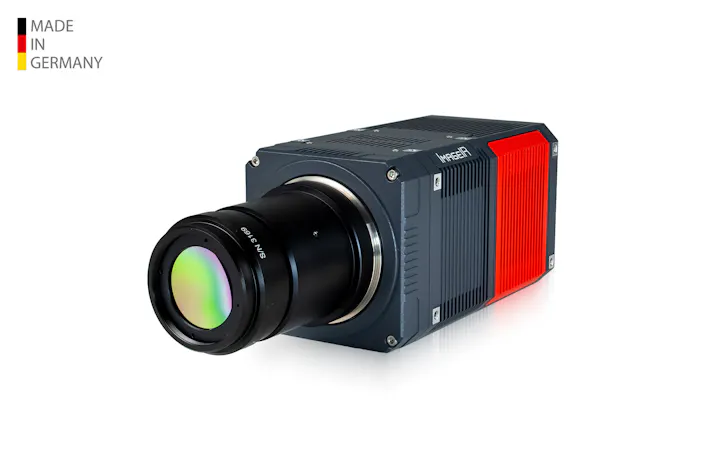

Small Pixel Pitch and Long Operating Time
The radiometrically calibrated system camera ImageIR® 6300 is equipped with a cooled focal plane array photon detector of the latest generation. By combining the detector format of (640 × 512) IR pixels with the very small pixel pitch of 10 µm, the camera delivers razor-sharp images. Due to its snapshot mode, moving objects can also be displayed without distortion and interruption (shutterless). The innovative XBn detector technology allows the detector to be operated at a significantly higher working temperature than the usual approximately 80 K. This allows the size, weight and power (SWaP) of the integrated detector/cooler unit to be minimised. The service life of the implemented cooler can thus be significantly increased to about 30,000 hours.
Its pixel pitch of only 10 µm gives the system camera a comparatively small pixel size. This allows for a compact optical design while maintaining high image quality. In combination with radiometric calibration, most precise measurement results can be achieved. With an optionally available integrated solid state drive (SSD), large amounts of data can be stored directly on the camera.

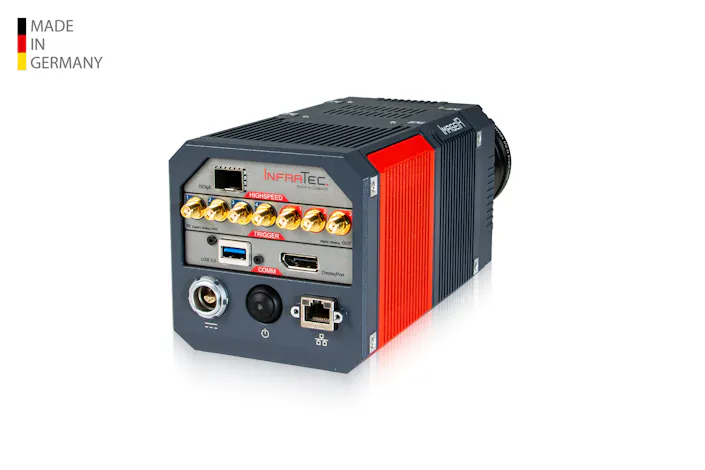

Technical Refinements of the ImageIR® 6300
The ImageIR® 6300 is the first model in the ImageIR® series to feature a new integrated operating system. This opens up a wide range of new functions, such as fully autonomous camera operation without the need for an additional control PC. The camera can also be controlled via a web interface using a smartphone or tablet. In addition, users can run their own software directly on the camera and access the data stream directly via the integrated SDK.
Measurements with the ImageIR® 6300 can be carried out at two speeds. In normal mode, the camera achieves full frame rates of up to 180 Hz. With the binning function, the frame rate can be increased by more than three times to up to 620 Hz. This is made possible by combining four detector pixels into a single one. Thereby the sensitive pixel area is increased to compensate for the shorter integration times, and the readout of the pixel data is accelerated. At the same time, the thermal resolution improves by a factor of two in high-speed mode. Even higher frame rates can be achieved by reducing the field of view to freely definable subframe modes.
Comprehensive Range of Optics Enables Wide Variety of Applications

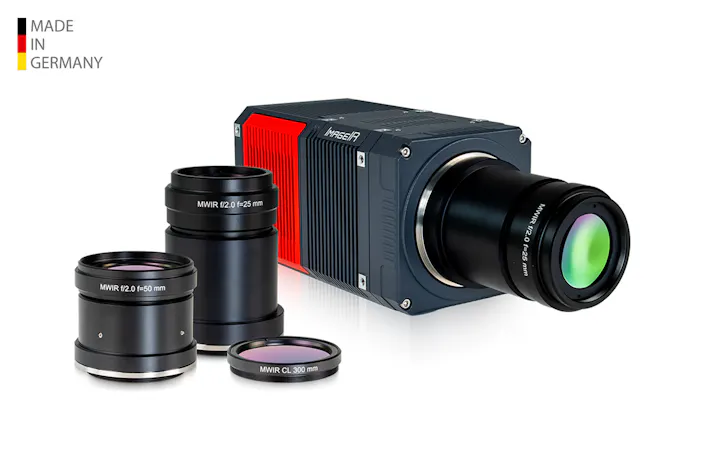

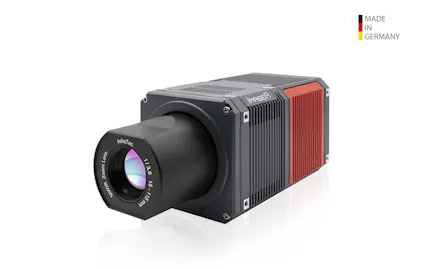

Thanks to the wide range of different interchangeable camera lenses available (12 mm, 25 mm, 50 mm (with an optional 300 mm close-up), 1x microscope), the ImageIR® 6300 can be optimally configured for a wide range of applications, from inline inspection to laboratory test stations. Within this camera series, the ImageIR® 6300 Z is available with a standard integrated 7.5x zoom lens and optional teleextender.
Technical Specifications
| Spectral range | (3.7 … 4.15) µm |
| Pitch | 10 µm |
| Detector | xBn |
| Detector format (IR pixels) | (640 x 512) |
| Image recording principle | Snapshot |
| Readout mode | ITR / IWR |
| Aperture ratio | f/3.6 |
| Detector cooling | Stirling cooler, MTTF ≤ 30,000 h |
| Temperature measuring range | (-10 ... 1,700) °C, up to 3,000 °C* |
| Measurement accuracy | ± 2 °C or ± 2 % |
| Temperature resolution at 30 °C | Better than 0.03 K / 0.02 K in high-speed mode |
| Frame rate (full / half / quarter / sub frame) | Up to 180/344/619/2.760 Hz / High-speed mode: 620/1030/1500/2150 Hz |
| Window mode | Yes |
* Depending on model
** In selected measurement ranges
Data Sheet
Get all the information you need at a glance in our data sheets.
Comprehensive Thermography Evaluation Software for Efficient Operation
The software family IRBIS® 3, which was developed by InfraTec, is part of a complete system of the camera series ImageIR®. The comfortable and professional thermography software IRBIS® 3 professional offers a wide range of analysis- and editing tools to analyse sophisticated thermal investigations. The combination of ImageIR® together with the professional thermographic software meets all requirements that are set as standard for efficient high-performance tools for thermographic investigations.
Configure Your Camera System
Each measurement or testing task has its own characteristic basic conditions. For getting optimal results camera, detector and lens have to be perfectly matched to one another. The field of view calculator helps you to determine the appropriate combination.
Would You Like to Know More?
It is not unusual for tasks to be associated with special requirements. Discuss your specific application needs with our specialists, receive further technical information or learn more about our additional services.

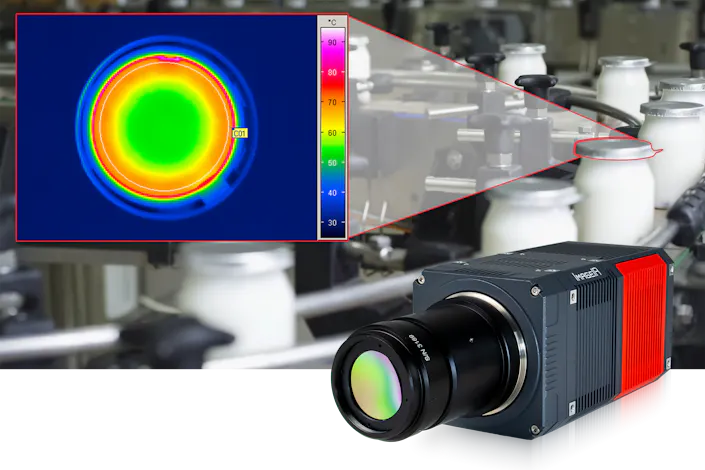

PEEL-SCAN – Checking seals using thermography
Plastic containers sealed with metallic films are often used in the pharmaceutical and food industries. With the PEEL-SCAN automation solution from InfraTec, defects in the seals can be detected, as can poor sealing seams between plastic and metal. Even the smallest defects that cause temperature differences of 20 mK can be detected with thermographic cameras such as the ImageIR® 6300 and visualised using IRBIS® software.
