Power Electronics – Efficient Control of the Futures Energy

Thermography in use for high-performance electronic systems

The energy efficiency of electronic components is becoming increasingly important in numerous fields of application. And that is not all: in our electronic and high-tech age, the demand is for even faster active components, higher power densities of miniaturised systems as well as absolute reliability. Along with this, there is the request for environmentally conscious resource procurement and the requirement that the increase in performance of modules should run parallel to lower energy consumption. For this reason, the electronics industry has relied on silicon (Si) for more than 50 years. However, this is now reaching its physical limits. The demands for more efficient and environmentally aware electronics, for example in data centres and in the development of electric cars, are growing steadily. Therefore, energy efficiency is becoming a strategic issue for wide areas of industry, and the semiconductor material gallium nitride (GaN) is becoming one of the key components in the field of renewable energies.

Further information about ImageIR® 8300

InfraTec Solution

Christian-Albrechts-Universität zu Kiel
Faculty of Technology, Chair of Power Electronics

https://www.uni-kiel.de/en/

M. Sc. Johannes Kuprat
Prof. Dr.-Ing. Marco Liserre

Thermal imaging system:

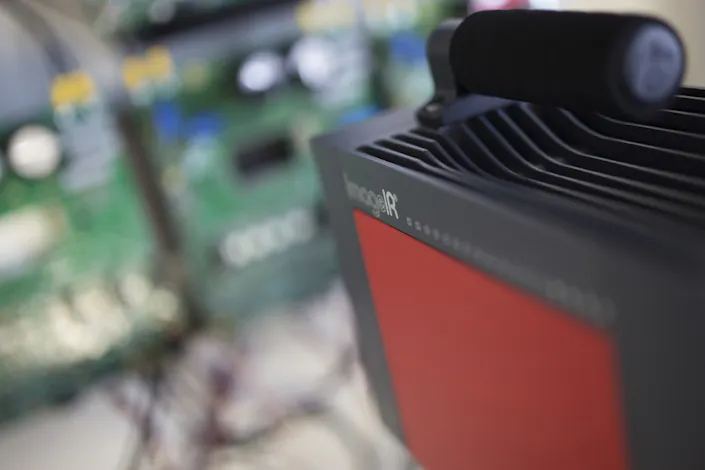

ImageIR® 8300 infrared camera

InfraTec Thermography Success Story: CAU Kiel

Silicon-based microelectronics have repeatedly reached new performance peaks in recent years. The number of transistors on a chip doubled almost every two years and so did the computing power of processors. But the limits have almost been reached, which is why the Institute of Electrical Engineering and Information Technology (ET&IT) and the Institute of Materials Science are working on new semiconductor materials. These are two of the three institutes of the Faculty of Technology at Christian-Albrechts-Universität zu Kiel (CAU Kiel). Research topics of this faculty include renewable energy, sensor technology and electromobility.

Future Semiconductor Materials – New Opportunities and Challenges

More powerful semiconductor materials are the prerequisite for the electronics market of the future in general and for power electronics in particular. Electronic systems should perform better and at the same time require less energy. This is a goal that manufacturers of electric cars, for example, have defined for themselves. The procurement of the resources used should be as environmentally friendly as possible and their use as efficient as possible.

What is required now are more powerful semiconductor materials for significantly smaller components. For this reason, power semiconductors such as gallium nitride (GaN) and silicon carbide (SiC) are overtaking silicon (Si), which has been used up to now. GaN transistors in particular enable a smaller size and potentially generate lower costs. They have a significantly lower conductive resistance for the same size of electronic components and achieve faster commutations, which in turn results in lower switching losses. The lack of reverse recovery charging also allows for higher frequency and power density. All of the above factors offer significantly higher energy efficiency than silicon-based technologies.

However, with this increase in performance and parallel to advancing miniaturisation, the requirements in the field of research and development of power electronics are changing. Above all, temperature is becoming an even more critical parameter for all power systems. GaN-based power modules, for example, operate at temperatures of up to 600 °C - higher than other silicon-based electronics. To ensure that the individual elements withstand the high thermal stress and do not fail prematurely, thermal management is extremely important. The GaN transistors operate with very high switching frequencies, resulting in equally rapidly cycling temperatures. This places high demands on the technology used for monitoring and/or process optimisation.

InfraTec Thermography Success Story: CAU Kiel

Thermography in Use for Power Electronics

Since both, the electronic components and the transistors, are very small, the infrared camera to be used must meet certain requirements. For this reason, a measurement set-up suitable for this purpose was designed for the CAU, in which a cooled thermography system of the ImageIR® infrared camera series from InfraTec is used. With its high thermal resolution, it detects even the smallest temperature changes and, due to its excellent geometric resolution, resolves structures of less than 50 µm in size in this application even with standard lenses. The ImageIR® infrared camera used has a cooled photon detector enabling the imaging of particularly fast processes. Switching peaks can thus be analysed without any problems. The non-contact measurement is non-destructive and enables the detection of several critical points, as the complete object is imaged. A further advantage is the non-complicated MATLAB interface via the IRBIS® Software Development Kit (SDK) from InfraTec.

Scientists at the Faculty of Technology at Christian Albrechts University (CAU) in Kiel are making use of these advantages. The changes and developments of temperatures and their distribution in various semiconductor materials in the field of power electronics are being researched here in order to optimise processes and techniques. In particular, it is about U-Heart: a new concept of isolated DC-DC converters with multiple connections, which were developed to achieve the highest reliability together with high energy efficiency with minimal redundancy. It is equipped with a fault detection circuit that excludes a detected faulty cell from power transmission. "Self-healing" approaches are actually under development to maintain the operation of all cells and to continue operating at full power. Thus, U-Heart is a ERC grant for a proof of concept for a maintenance-friendly power converter and can be used as a multi-port converter connecting multiple voltage grids, e.g. energy storage systems (batteries, supercapacitors), renewable energy sources (solar PV modules, fuel cells, etc.) and DC loads. The development of this energy superstar also benefited from insights gained through thermography from the predecessor project Heart (ERC grant).

In general, it is reasonable to use thermographic cameras already in the development and creation process of new electronic components. Valid and meaningful data about the heat development in the components is obtained. This again allows, among other things, conclusions to be drawn about the performance and energy efficiency of a module, and faults are reliably detected at an early stage and can be rectified.

InfraTec Thermography Success Story: CAU Kiel

High Speed Thermal Measurement

High Speed Thermal Measurement System

Play
Playing the video requires your consent to set YouTube cookies, which are advertising cookies.

Advantages of this Thermography Solutions in this Application

  • Learn more about the modular concept

    Modular Concept for Your Flexibility

    The camera can be adapted to all requirements of the user due to modular design of the camera series ImageIR®. This means that a customer-specific thermography system is achieved in every direction. But the ImageIR® can also be subsequently retrofitted or upgraded in the event of changing measurement requirements. In this way, maximum investment security is achieved.

  • InfraTec thermography - Thermal resolution

    Thermal Resolution – Determination of Differences of Only a Few Millikelvin

    For detection of small temperature changes InfraTec's infrared cameras offer thermal resolutions up to < 15 mK in real-time operation. By using the Lock-in Thermography method it is possible to further increase this resolution significantly. For this purpose test objects are periodically excited and non-destructively examined for defects and irregularities.

  • Thermografie-Kameraserie ImageIR® mit neuer 10 GigE-Schnittstelle
    Further information about the 10 GigE technology

    10 GigE Interface for a Strong Increase in Output

    The 10 Gigabit Ethernet interface of the high-end camera series ImageIR® opens this extremely fast transmission standard with a NIC specially developed by InfraTec. This works with optical or electrical transceiver modules that are easy to change and are called SFP+.

    Different 10 GigE fiber SFP+ transceivers allow transmission ranges of up to ten kilometers with the same low sensitivity to electromagnetic interference. A corresponding standard SFP ensures backward compatibility with the conventional GigE interface. This combination allows the ease of use of the cameras with the 10 Gigabit Ethernet interface in existing systems - though at a reduced transmission rate.

  • InfraTec thermography - Geometrical Resolution

    Geometrical Resolution – Efficient Analysis of Complex Assemblies

    InfraTec's infrared cameras with cooled and uncooled detectors have native resolutions up to (1,920 × 1,536) IR pixels. Spatially high-resolution thermograms ensure that components and assemblies are imaged down to the smallest detail and thus defects can be reliably detected and precisely localised.
